RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

Product Categories
Shenzhen Resky Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

  • 1
  • 2

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP8045130SH15

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 100000PCS/Day

Delivery Time : 7-10days

Packaging Details : Paper box

Electrolyte : Li(Nicomn)O2

Nominal Capacity : 5000mAh

Max Discharging Current : 15c

Peak Discharging Current : 30c

Weight : 132g

Warranty : 12months

Connector : Xt60, Xt90, T-Type, Anderson, Bullet

Specification : 8*45*130mm

HS Code : 8507600090

Contact Now

Product Description


RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone



NO. Items Specifications
1 batteries  3.7V 5000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 5000mAh     15C Discharge
5 Charge current
        		 Standard Charging:0.2C
Rapid charge:     15C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
        		 Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 15.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length:130±0.5mm (not including tabs)
Width:45±0.5mm
Thickness:8±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times



Features:







Capacity and Voltage:





Capacity: Measured in milliampere-hours (mAh), this determines how long the RC vehicle will run per charge. A higher mAh rating means longer run time.



Voltage: Determines the speed and power of the RC model. The voltage of a battery pack is the sum of the voltages of its individual cells. For example, a 2S LiPo battery pack has two cells in series, providing a voltage of around 7.4V.





Safety and Maintenance:





LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.



It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.





Performance Over Time:





RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.



Pictures:

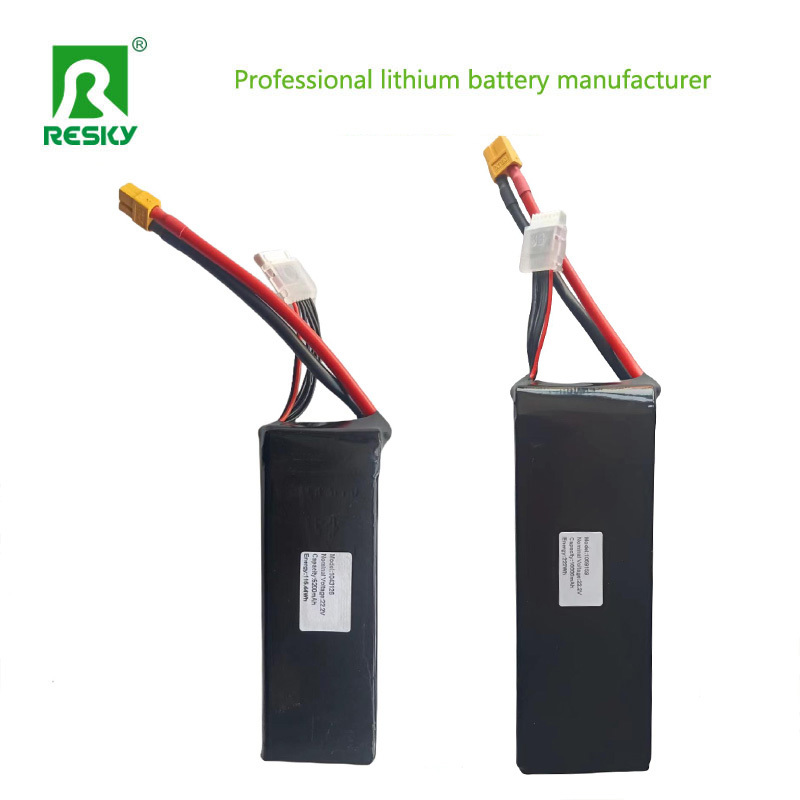

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

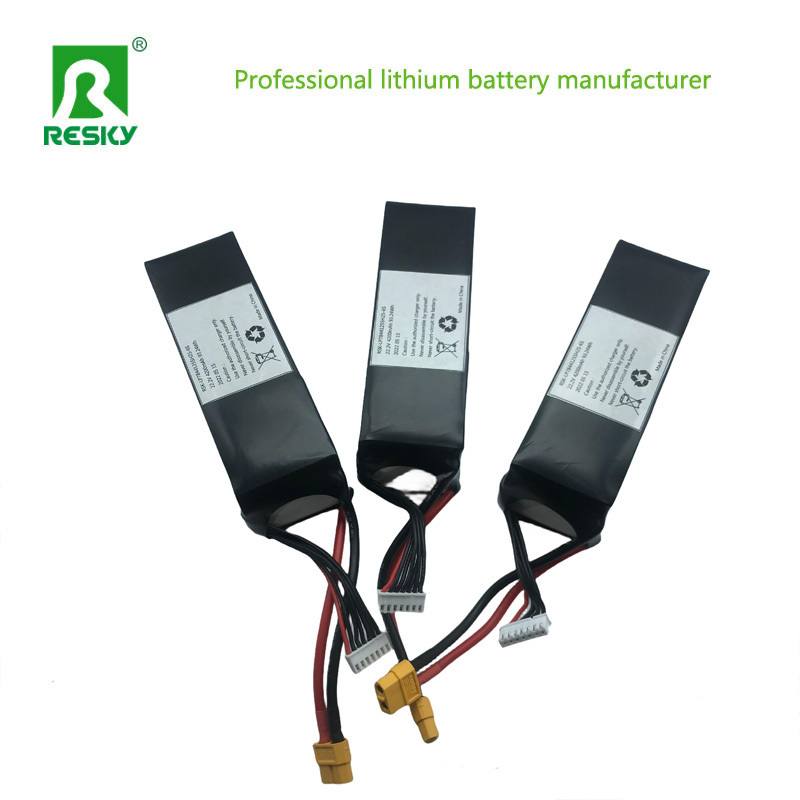

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

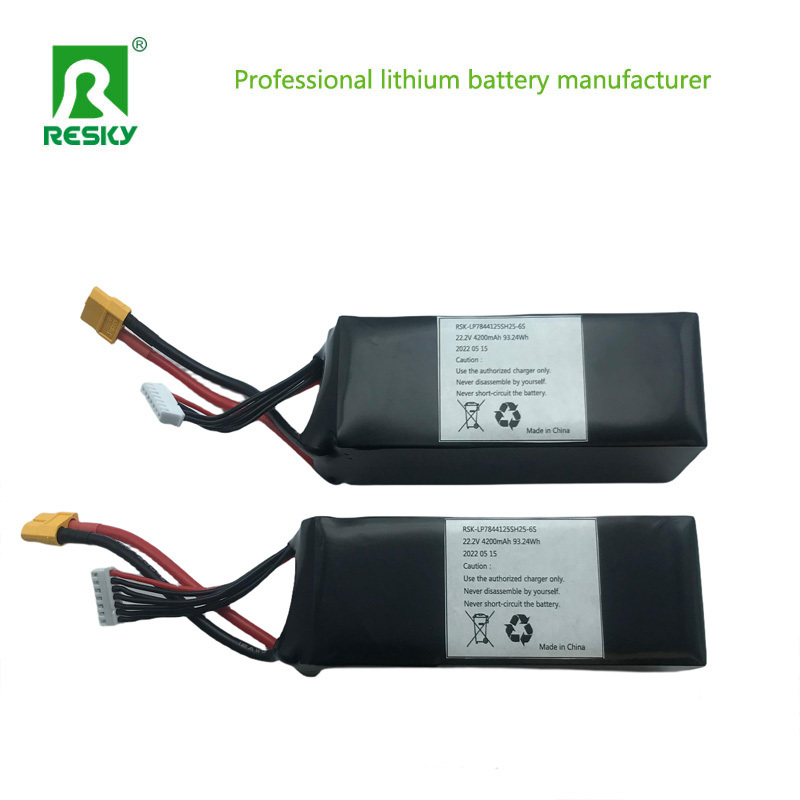

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

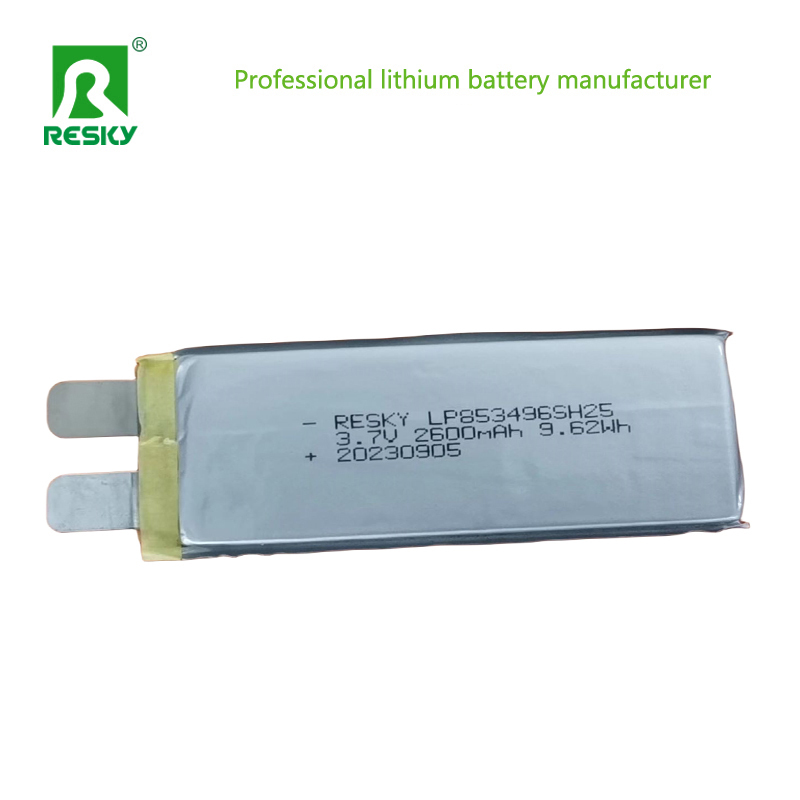

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone

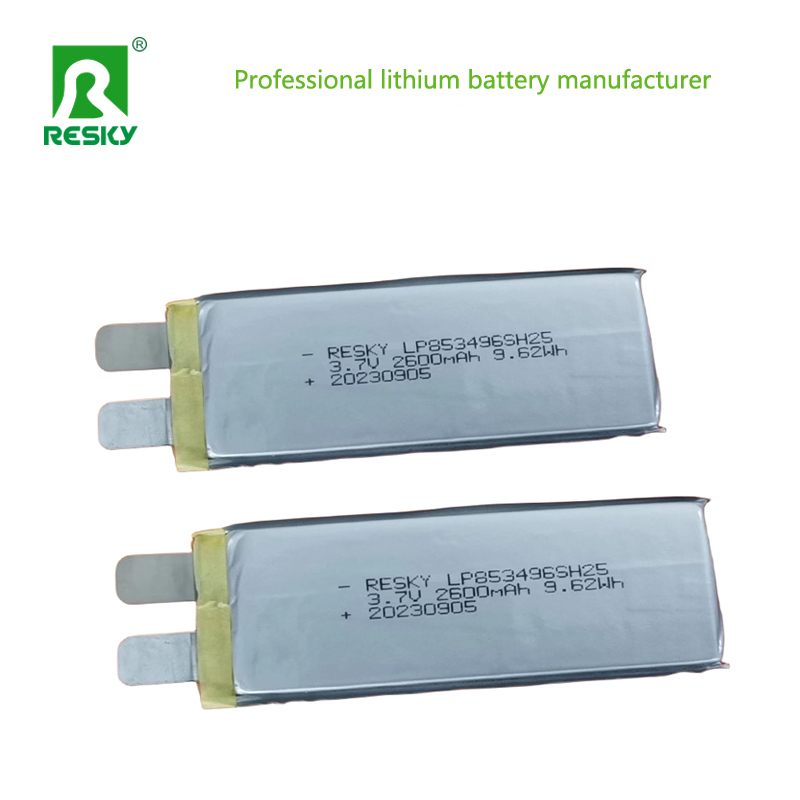

RC Lipo Battery Pack 7.4V 11.1V 14.8V 22.2V 5000mAh 15c For RC Boat RC Drone
