Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device

Name: Power Lithium Polymer Battery Cell 505060 2000mAh 74wh 37V For Medical Device
Brand: RESKY
Price: 1 USD

Buy cheap Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device product

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP505060

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : Western Union,T/T

Supply Ability : 50000pcs/day

Delivery Time : 7-10days

Packaging Details : Paper box

Model NO. : LP505060

Nominal Capacity : 2000mAh

Max Discharging Current : 1c

Weight : 25g

MOQ : 10PCS

Shipping : UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line

Lead Time : 3-7workdays

Connector : Jst, Molex....

Original : Shenzhen, China

Specification : 5*50*60mm

Contact Now

Product Description

Power Lithium polymer battery cell 505060 2000mAh 7.4wh 3.7V for medical device

NO.	Items	Specifications
1	batteries	3.7v 2000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:60±2mm (not including tabs) Width:50±0.5mm Thickness:5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs.

Low Self-Discharge Rate: Lithium polymer batteries exhibit a low self-discharge rate, meaning they retain their charge better over time when not in use. This is particularly beneficial for devices that may be stored for extended periods.

Improved Safety: Advances in technology have led to the development of safer lithium polymer batteries with enhanced protection mechanisms against overcharging, overheating, and short-circuiting. Although safety concerns still exist, modern designs have significantly mitigated these risks.

Pictures:

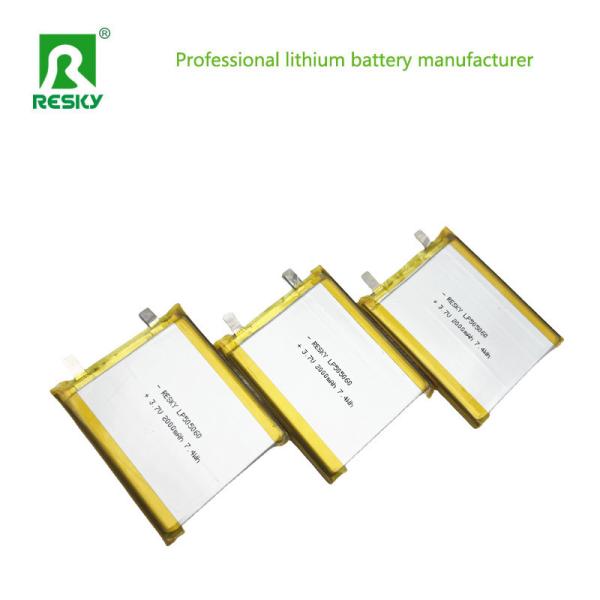

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device
