Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

Product Categories
Shenzhen Resky Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

  • 1
  • 2

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP602055-2P

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : Western Union,T/T

Supply Ability : 50000pcs/day

Delivery Time : 7-10days

Packaging Details : Paper box

Model NO. : LP602055-2P

Nominal Capacity : 1200mAh

Charging Current : 0.2c

Continuous Discharging Current : 0.5c

Max Discharging Current : 1c

Weight : 9g

Warranty : 12months

Shipping : UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line

Electrolyte : Li(Nicomn)O2

Specification : 13*20.5*58mm

Contact Now

Product Description



Power Lithium polymer battery pack 602055 3.7V 2P 600mAh 1200mAh for medical device



NO. Items Specifications
1 batteries  3.7v 1200mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1200mAh     0.2C Discharge
5 Charge current
        		 Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
        		 Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 58±2mm (not including tabs)
Width: 20±0.5mm
Thickness:13±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times



Application:





Portable Devices:



Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.



Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.



E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.



Renewable Energy Systems:



Energy Storage Systems: Li-poly batteries are used in some energy storage systems to store excess energy generated by renewable sources like solar and wind.

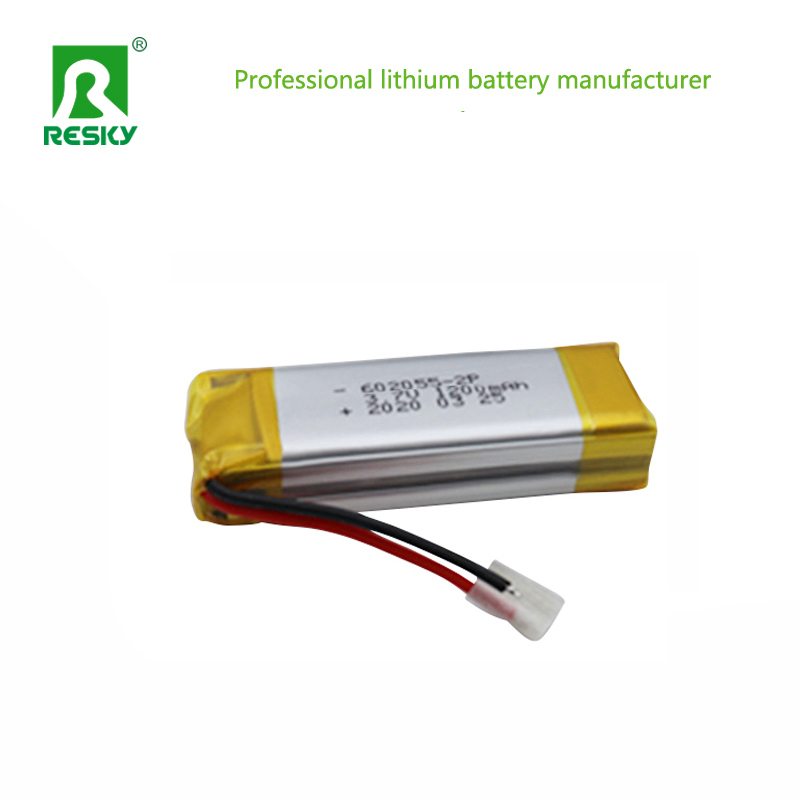

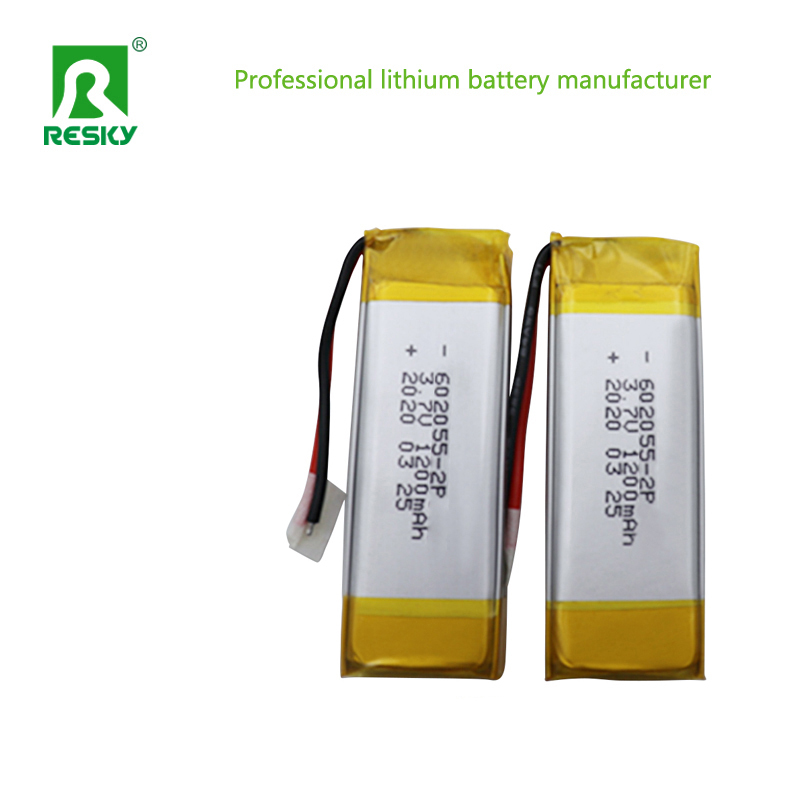

Pictures:



Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device

Custom Lipo Battery Pack 602055 3.7V 2P 600mAh 1200mAh For Medical Device
