Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone

Product Categories
Shenzhen Resky Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone

  • 1
  • 2

Certification : CE, RoHS, MSDS, Un38.3,IEC62133,ect

Brand Name : RESKY

Model Number : LP502025

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 50000pcs/dat

Delivery Time : 7-10days

Packaging Details : Paper box

Model NO. : LP502025

Capacity : 200mAh

MOQ : 100PCS

Electrolyte : Li(Nicomn)O2

Cycle Life : 500cycles

Warranty : 12months

Shipping : UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line

Lead Time : Within 5-7Workdays

Connector : Jst, Molex....

Specification : 5*20*25mm

Contact Now

Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone
Technical Specifications
NO. Items Specifications
1 Batteries 3.7V 200mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 200mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.2C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours (Ref.)
Rapid: 2 hours (Ref.)
8 Max. charge current 0.5C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 25±0.5mm
Width: 20±0.5mm
Thickness: 5±0.2mm
14 Drop Test Dropped from 1m height twice onto concrete - no fire, no leakage
15 Cycle time ≥800 cycles
Key Features
  • Compact Design: Ultra-slim 5*20*25mm form factor ideal for space-constrained devices
  • Stable Performance: Consistent 3.7V output for reliable device operation
  • Optimized Capacity: 200mAh provides sufficient runtime for low-power applications
  • Enhanced Safety: Built-in protection against overcharge, over-discharge, and short circuits
  • Long Lifespan: Supports 300-500 charge cycles under standard conditions
  • Low Self-Discharge: Maintains over 90% capacity after 1 month storage
  • Lightweight: Only 3-5 grams for minimal impact on portable devices
Primary Applications
  • Mini wearable devices (smartwatches, fitness trackers)
  • Portable medical gadgets (pulse oximeters, thermometers)
  • IoT sensors and Bluetooth beacons
  • Small consumer electronics (earbud cases, mini speakers)
  • Micro RC toys and educational models
  • Backup power for GPS trackers and small LED lights

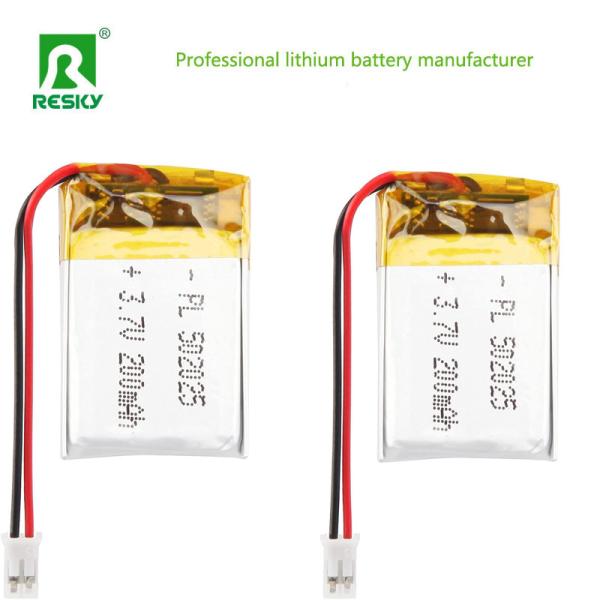

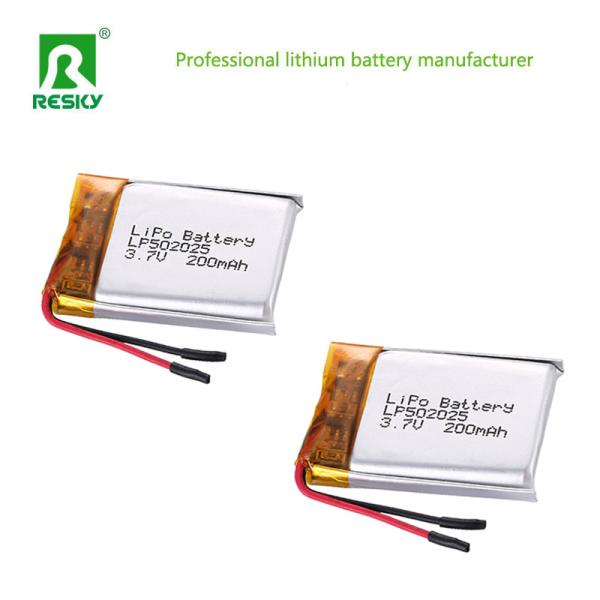

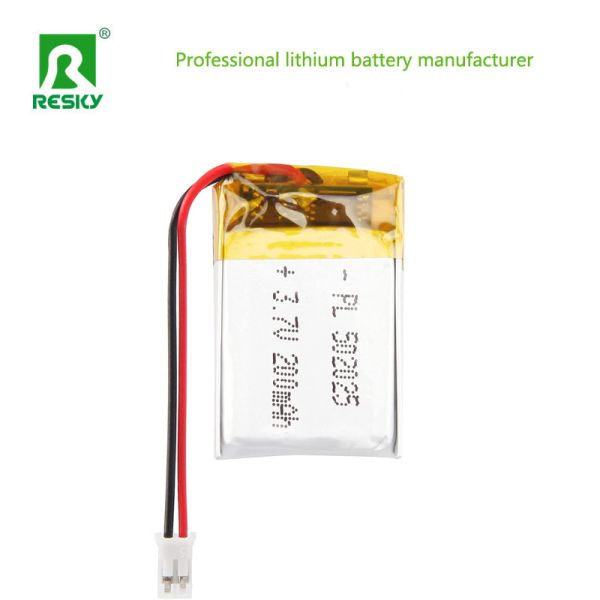

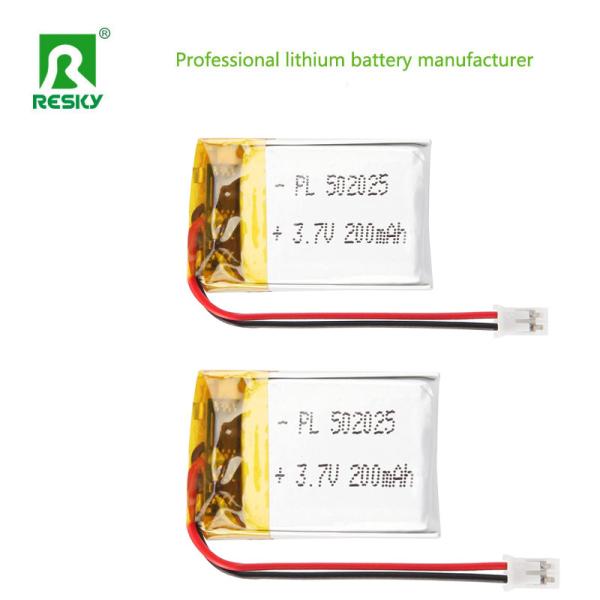

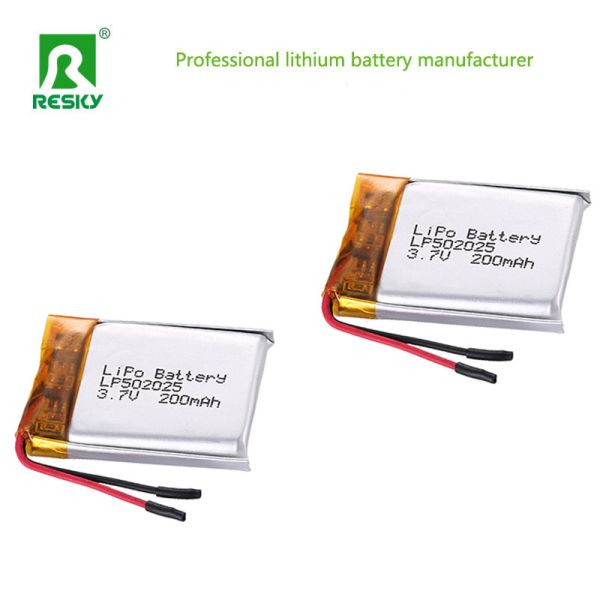

Product Images
Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone
