Product Description
Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 1500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1500mAh 0.2C Discharge |
| 5 | Charge current
| Standard Charging:0.5C
Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time
| Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:60±2mm (not including tabs)
Width:30±0.5mm
Thickness:8±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Remote-Controlled Toys and Models
LiPo batteries are popular in remote-controlled cars, planes, boats, and other toys due to their ability to provide high discharge rates and long runtimes. This makes them ideal for applications that require rapid acceleration and sustained performance.
Portable Media Players
Devices like MP3 players, portable game consoles, and digital cameras often use LiPo batteries because they are lightweight, have a high energy-to-weight ratio, and can be easily shaped to fit within the device's housing.
Industrial and Medical Equipment
In industrial settings, LiPo batteries are used in tools and equipment that require compact, high-performance power sources. In the medical field, they are found in portable medical devices such as defibrillators and ECG machines, where reliability and long battery life are crucial.
GPS Tracking Devices
LiPo batteries are often used in GPS tracking devices due to their long operational life and ability to be shaped into compact forms, which is essential for devices that need to be discreet and lightweight.

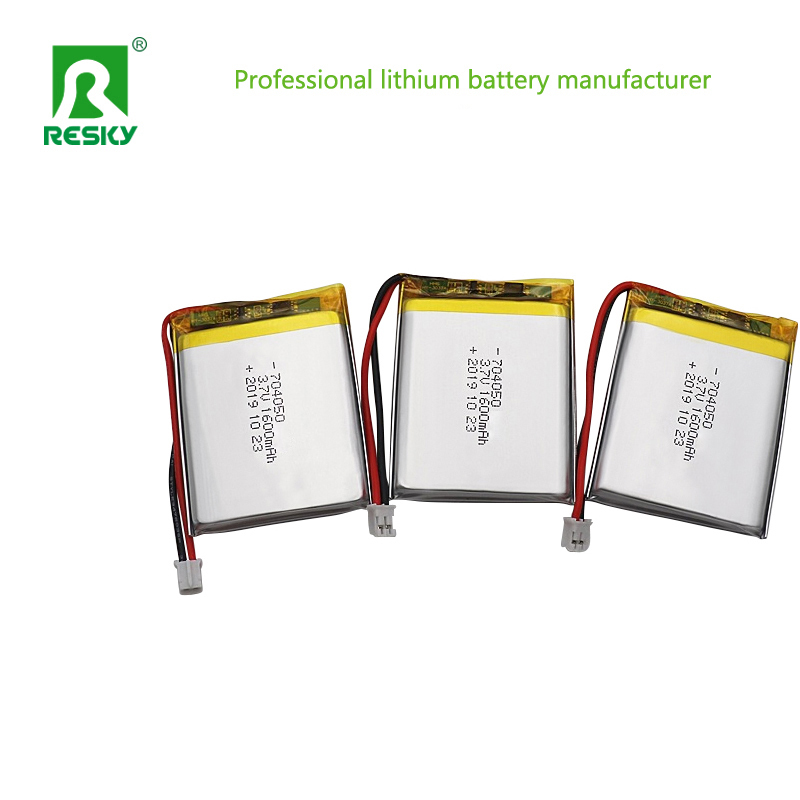

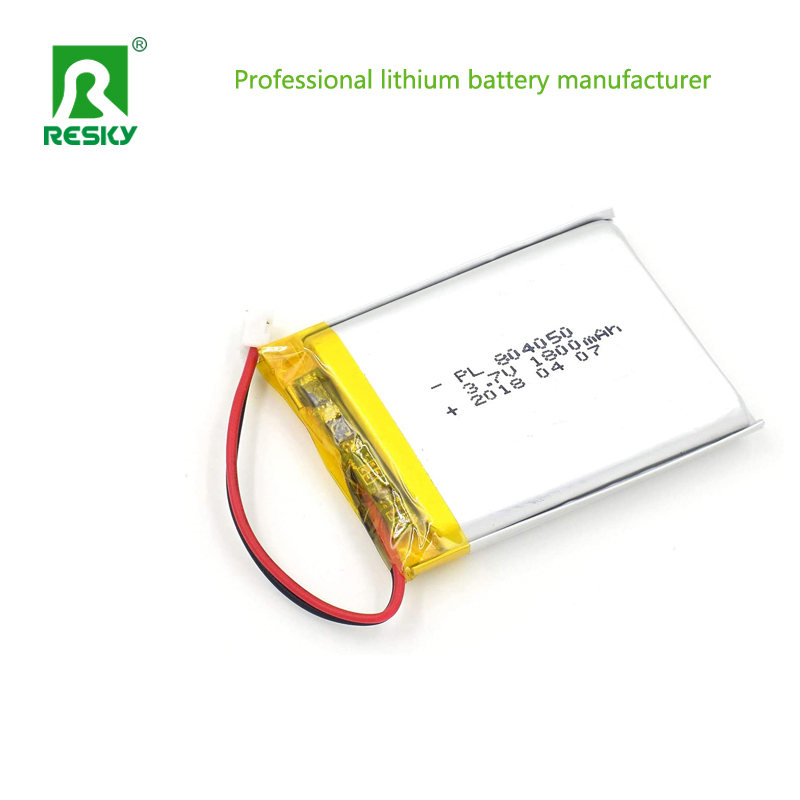

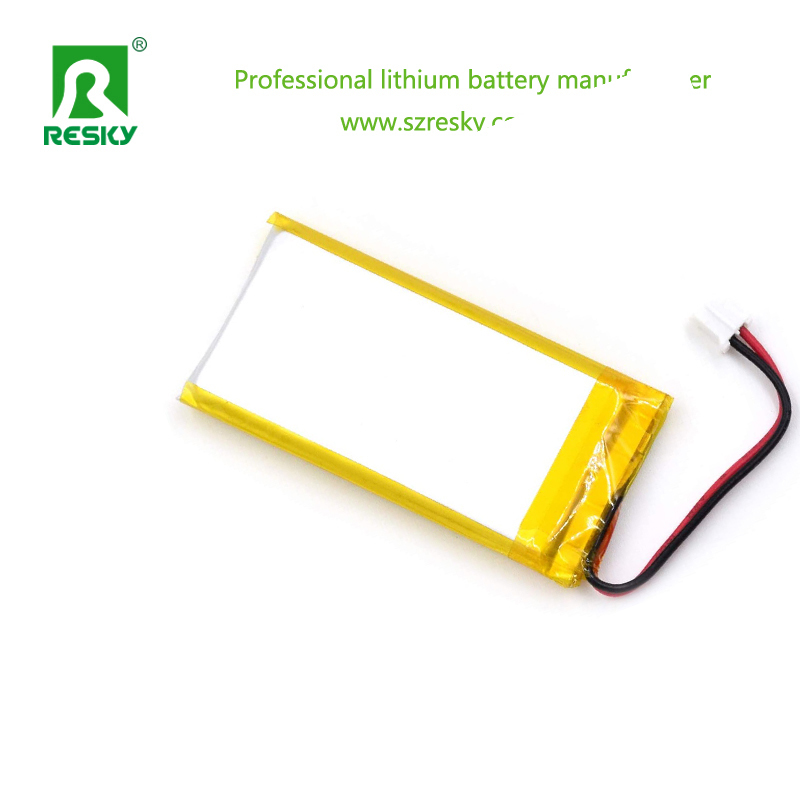

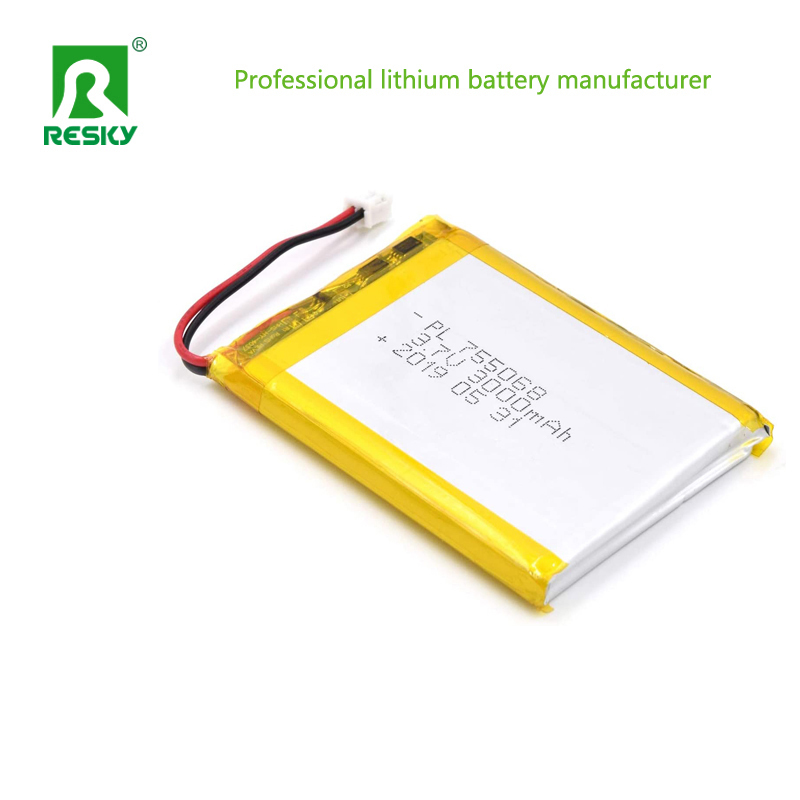

Picures:
