Certification : CE, RoHS, MSDS, Un38.3
Brand Name : RESKY
Model Number : LP803043
Place of Origin : China
MOQ : 10pcs
Price : Negotiable
Payment Terms : Western Union,T/T
Supply Ability : 100000PCS/Day
Delivery Time : 7-10days
Packaging Details : Paper box
Nominal Capacity : 1000mAh
Weight : 10g
Cycle Life : 500cycles
Warranty : 1year
Shipping : UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector : Jst, Molex....
OEM Service : Yes
Specification : 8*30*40mm
HS Code : 8507600090
Prismatic Lithium Polymer Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh Batteries
NO. | Items | Specifications |
1 | batteries | 3.7v 1000mah lipo battery |
2 | Charge voltage | 4.2V |
3 | Nominal voltage | 3.7V |
4 | Nominal capacity | 1000mAh 0.2C Discharge |
5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
8 | Max.charge current | 1.0C |
9 | Max.discharge current | 1.0C |
10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
12 | Storage temperature | -10°C~ +45 °C |
13 | Dimension | Length: 40±2mm (not including tabs) Width: 30±0.5mm Thickness:8±0.2mm |
14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
15 | cycle time | ≥500times |
How to Ensure the Safety of Lipo Batteries:
Regular Checks: Periodically check the battery's charge level, especially if stored for several months. Recharge if the battery's charge has significantly dropped to prevent over-discharge.
Voltage Maintenance: Avoid storing batteries for long periods at full or completely depleted charge levels, as overcharging and over-discharging can adversely affect the battery's overall performance and lifespan.
Provide users with comprehensive information on LiPo battery safety, including proper usage, maintenance, and storage practices.
Encourage users to read and follow the battery manufacturer's instructions and safety warnings.
Training:
Offer training sessions or workshops on LiPo battery safety for users, especially those who work with batteries in professional settings.
Picures:
![]() |

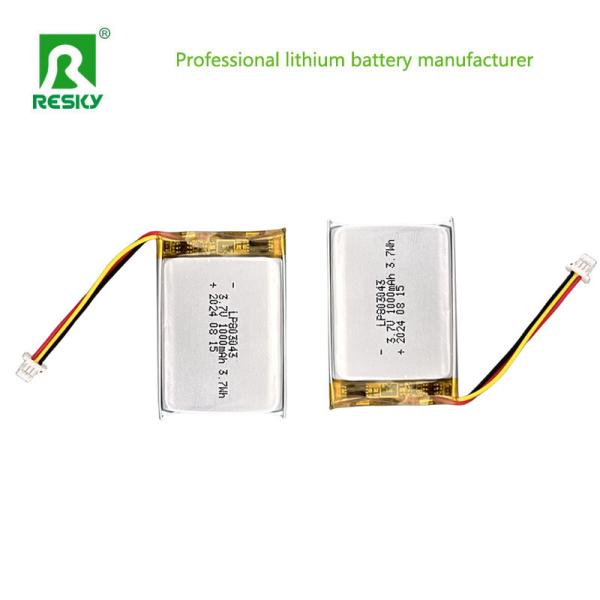

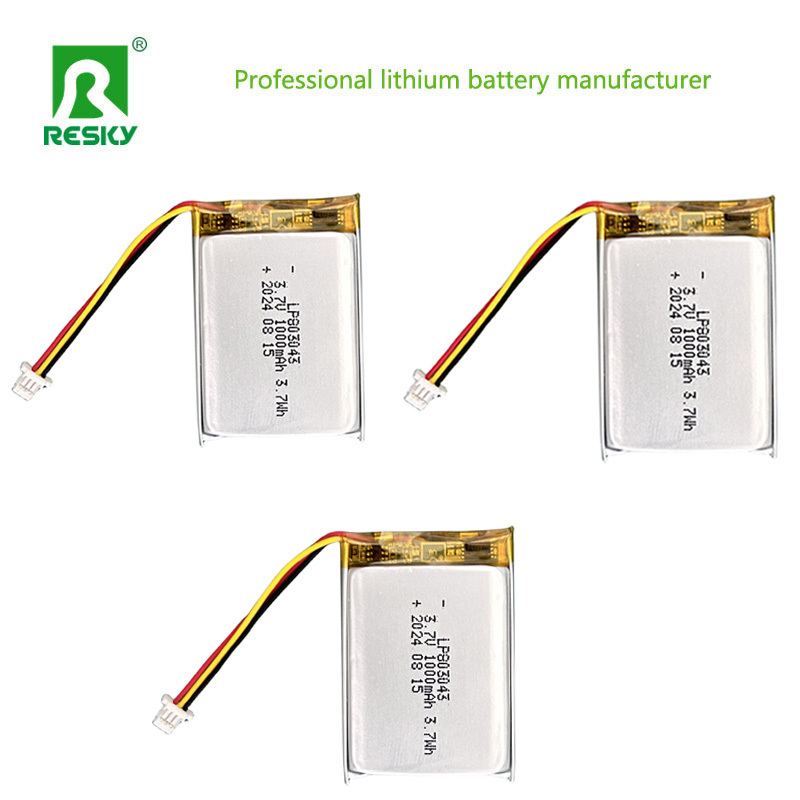

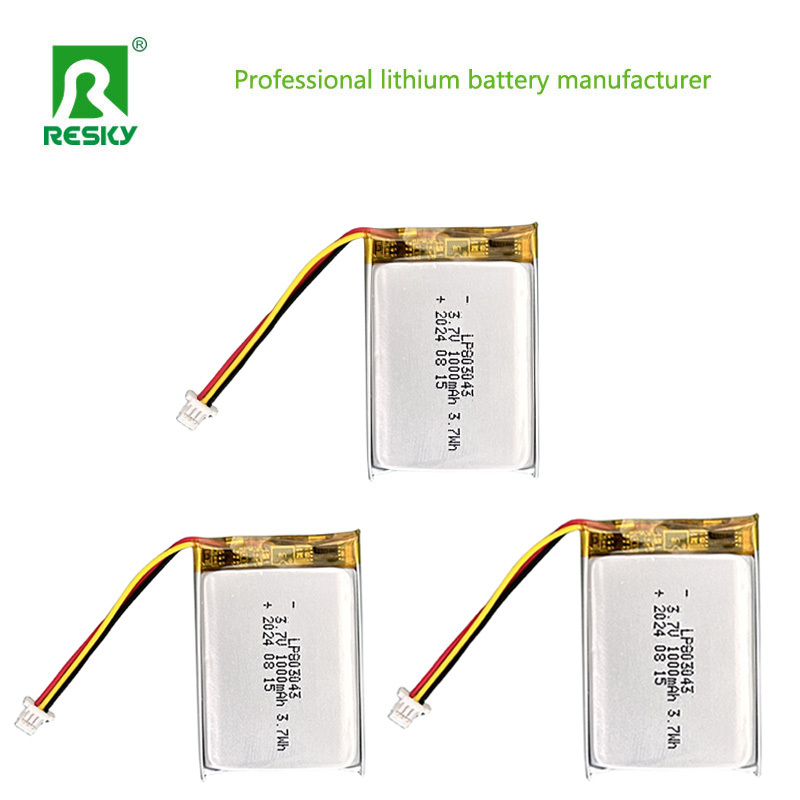

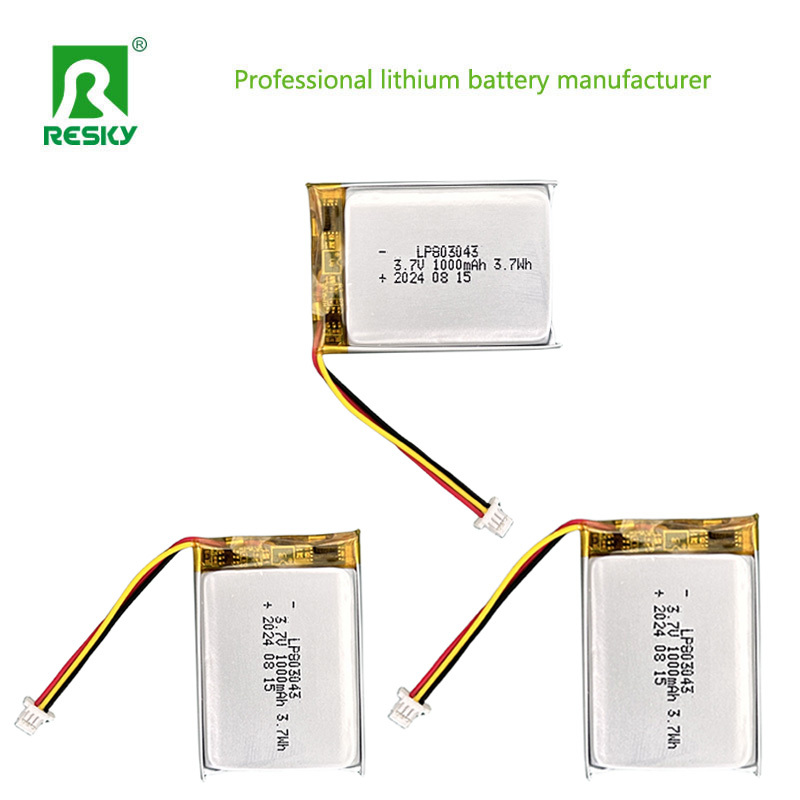

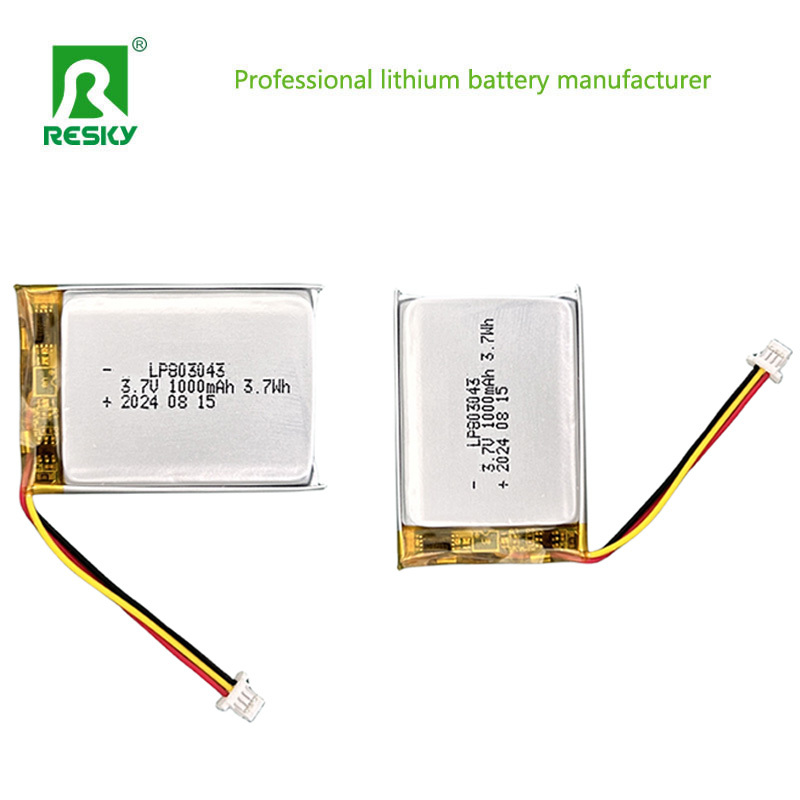

Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh Images |
